The pane • doltliter

dolt_pane() is a Shiny gadget, and an RStudio addin, in the spirit of RStudio’s Git pane: what has changed, what the change looks like row by row, the history, and the branch operations — over a connection you already have open.

library(doltliter)

con <- DBI::dbConnect(Doltlite(), "mydata.db")
dolt_pane(con)

Call it with no arguments and it uses the single open connection it can find; if there are several, it says so rather than guessing. There is also an Addins → DoltLite pane entry, which does the same thing.

It needs the suggested packages:

install.packages(c("shiny", "miniUI", "DT"))

It runs on your connection, and that is the whole design

The obvious way to build this would be a background process watching the database file, so the pane could sit there permanently like the Git pane does. That does not work here, and it is worth knowing why before the screenshots make it look simpler than it is.

A background pane means a second connection. Measured against a first:

What a pane needs	On a second connection
See uncommitted changes	works
Commit them	works
Report the branch you are on	wrong — you on `feature`, it says `main`
See work inside an open transaction	blind — nothing, while you have changes
Write while you hold a transaction	fails — `database is locked`

The third row is the one that settles it. Branches in DoltLite are per connection, so a background pane would show its own branch rather than yours, and pressing Commit could land your work on a branch you are not on, silently. Rows four and five are each independently fatal.

So the gadget runs in your R session, on the connection you hand it. The cost is that it blocks the console while open, which is the honest trade rather than a limitation to apologise for: the state that matters — your branch, your transaction, your uncommitted rows — lives in your connection and nowhere else.

Changes

The working set, the row-level diff for whichever table you select, and a commit box.

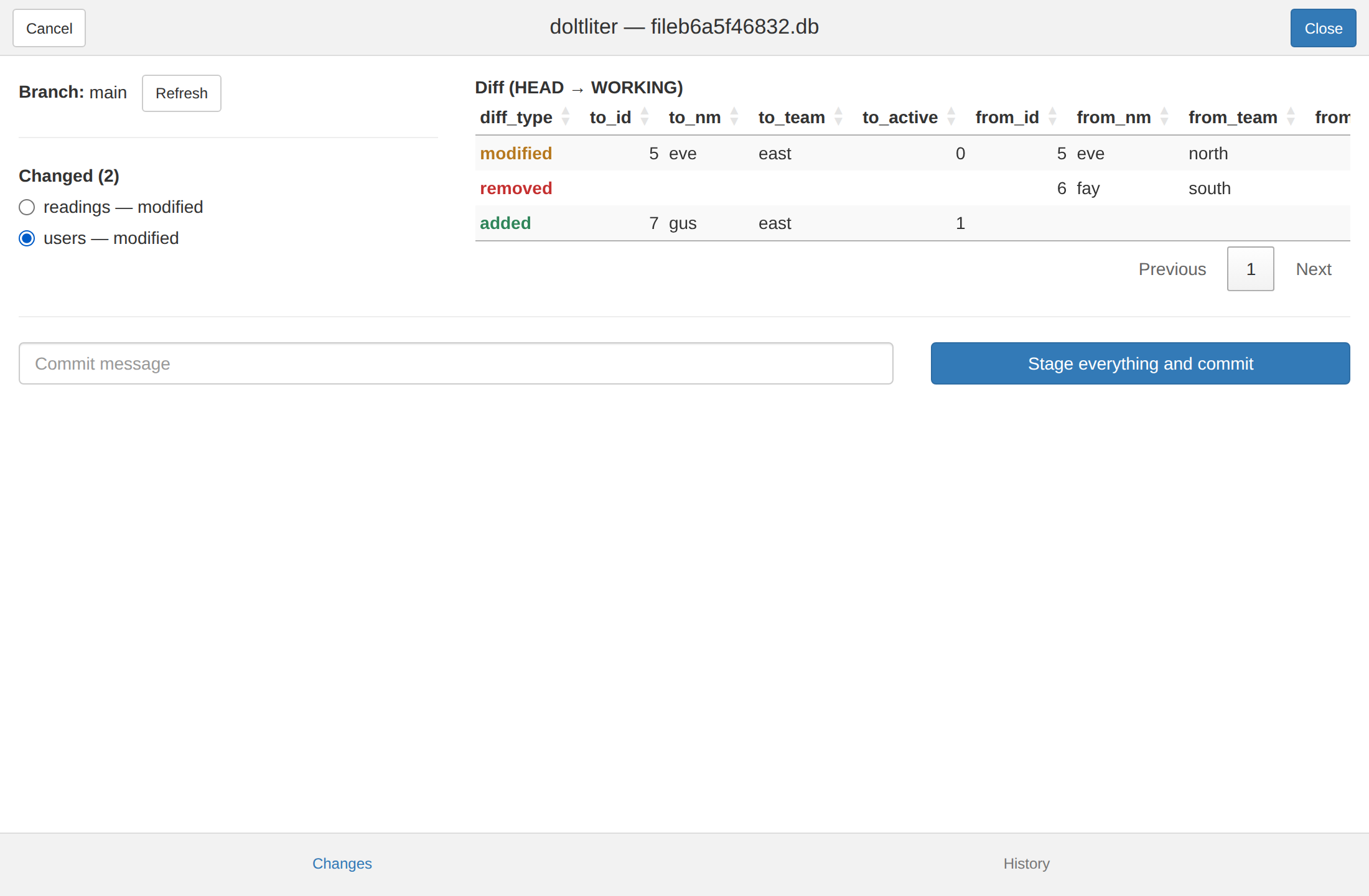

The Changes tab: two modified tables, the diff for one of them, and the commit box

The diff is where this beats the Git pane rather than imitating it. Git’s diffs are text, so a GUI adds modest value. dolt_table_diff() returns structured rows — from_/to_ column pairs — which is genuinely better in a sortable table than printed at the console, and it is the thing you most want to look at before committing. diff_type leads because it is what you scan for, and is coloured green for added, amber for modified, red for removed.

Two things the buttons are explicit about:

Commit refuses while a SQL transaction is open. dolt_commit() ends the enclosing transaction, so committing from the gadget mid-dbBegin() would silently end a transaction your console still believes is running.
“Stage everything and commit” is named that way because dolt_add("-A") sweeps the whole working set, not just the table on screen.

Branches

List, create, switch, and merge.

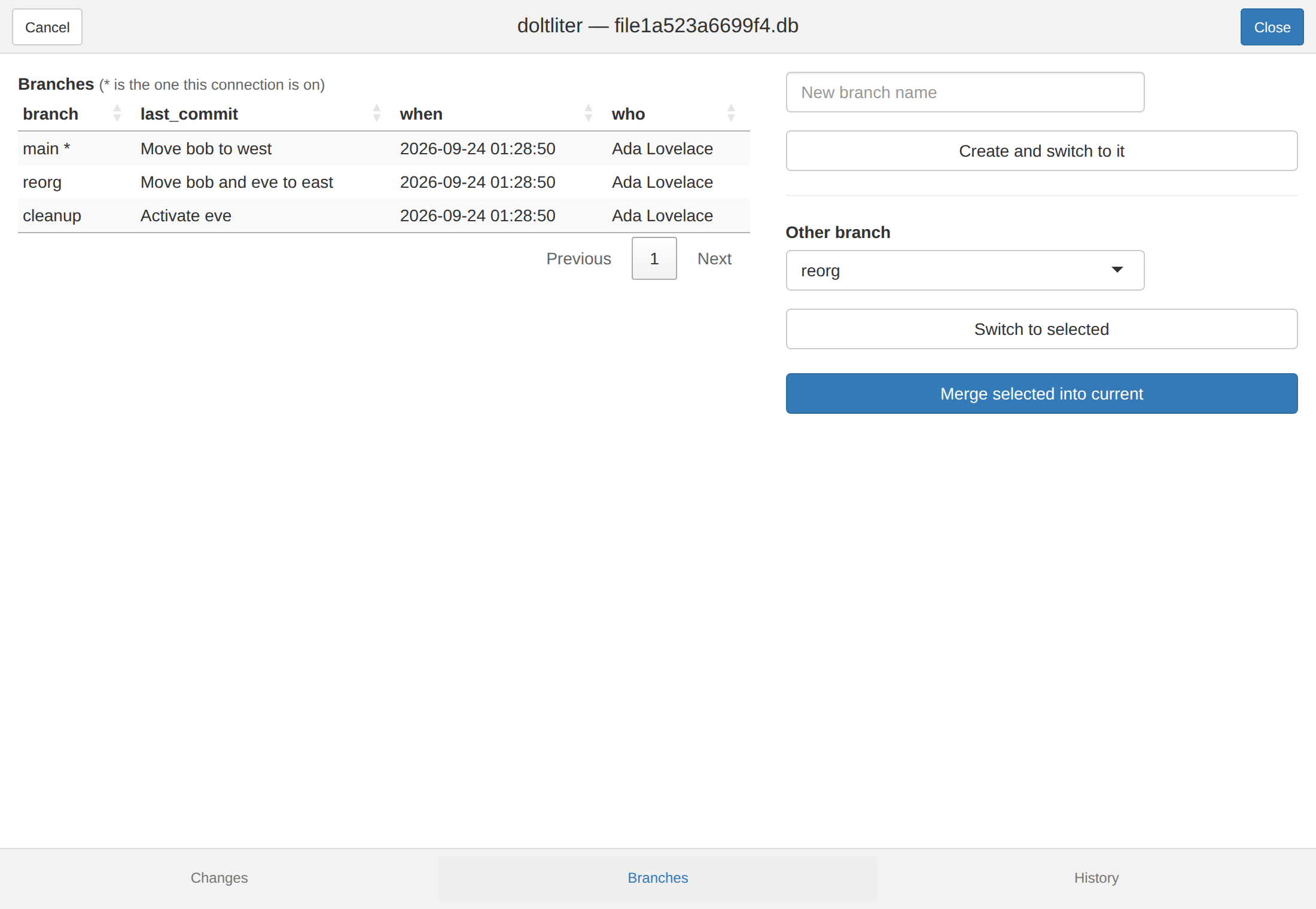

The Branches tab: the branch list with the current branch marked, and controls to create, switch and merge

Merging, and conflicts

Merges run inside a transaction because they have to. DoltLite rolls a conflicting merge back whole in autocommit mode, so there would be nothing left to inspect — conflicts are only reachable inside BEGIN/COMMIT. When one conflicts, the gadget holds that transaction open and shows you base, ours and theirs side by side.

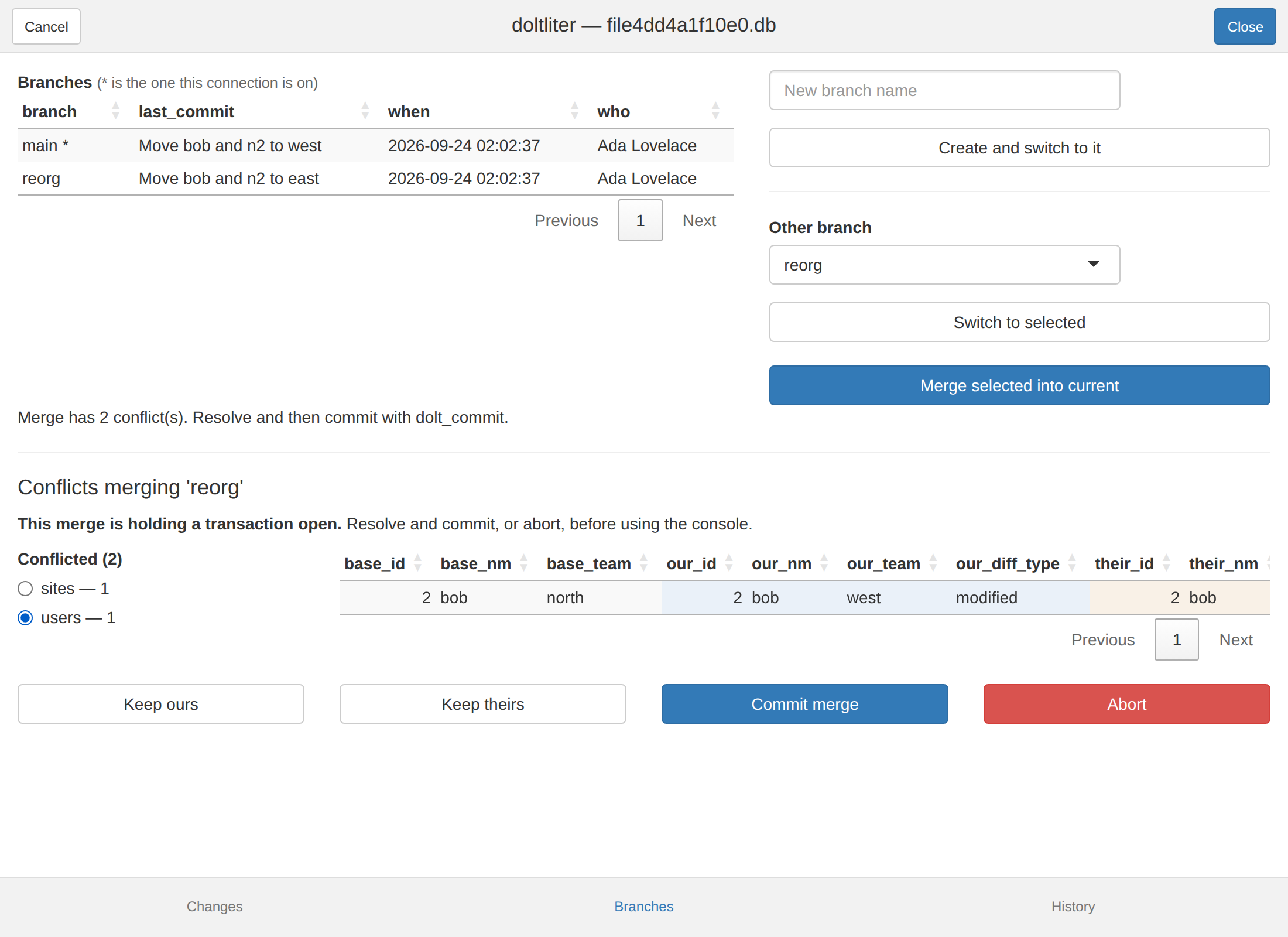

A conflicted merge: the conflicted tables listed with their counts, and base, ours and theirs for the selected one

Conflicts are handled one table at a time, because the conflict columns follow the shape of the table they belong to — our_team for one table, our_region for another — so several conflicted tables genuinely cannot share a view. The picker lists them with their counts and the detail follows your selection.

Keep ours and Keep theirs resolve the table you are looking at, not every conflicted one. That is deliberate twice over: a button that silently acted on tables off screen would be a trap, and the whole reason two tables conflict separately is that they may deserve different answers.

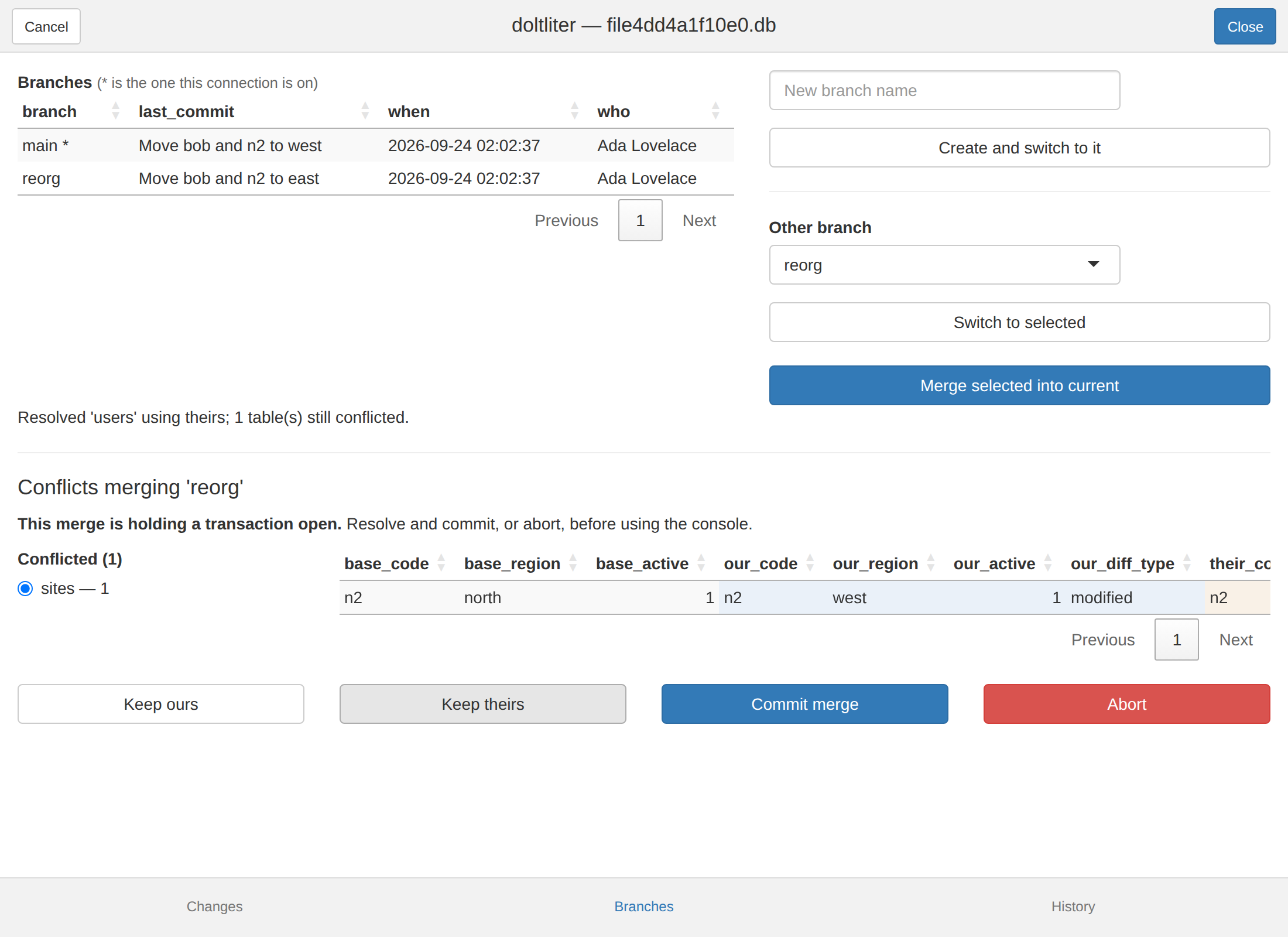

After resolving one table: it leaves the list, the other stays conflicted

Tables leave the list as they are resolved, so it empties as you work through it. Then Commit merge finishes, or Abort rolls the whole thing back — which restores the rows and clears the merge, since a rollback is exactly what undoes an unfinished merge.

Two consequences worth keeping in mind:

A conflicted merge means an open transaction on your connection. Finish or abort it before going back to the console. Closing the window rolls it back rather than stranding it.
A merge is refused while the working set is dirty, because DoltLite requires a clean one. Commit on the Changes tab first.

What is not there

Remotes. dolt_push(), dolt_pull() and friends are not wrapped here. They need a configured remote and credentials, and their side effects reach beyond your machine — a different class of risk from everything above.

Tags, reset, revert, cherry-pick. All available as functions; none have buttons yet.

Packaging

shiny, miniUI, DT and rstudioapi are Suggests, not Imports. This is one optional entry point in a package whose job is to be a DBI backend, and most users of the backend never open it. dolt_pane() names what is missing rather than failing obscurely:

dolt_pane(con)
#> Error: dolt_pane() needs shiny, miniUI and DT. Install with:
#>   install.packages(c("shiny", "miniUI", "DT"))

Four suggested packages for one function is a fair argument for eventually moving the pane into a companion package. It costs nothing while the package is distributed from GitHub.
